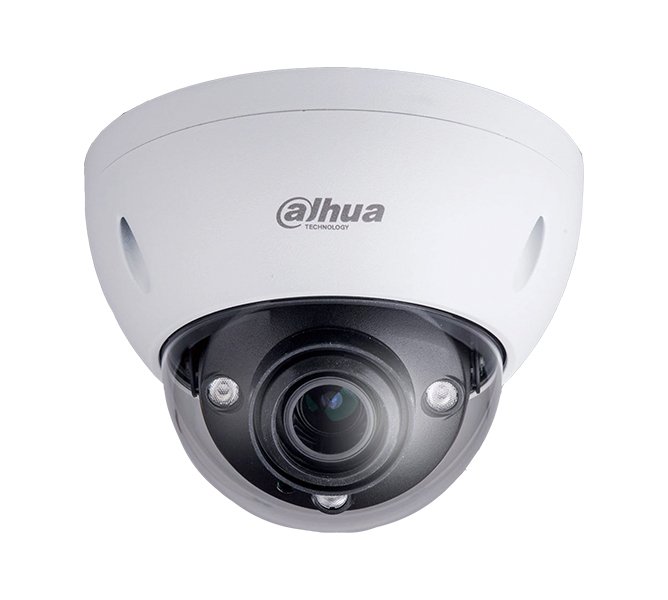

IPC-HDBW8241E-Z-27135 2MP IR AI Dome Network Kamera

Kategori
Marka
Stok Kodu
MDL400002
Fiyat
0,00 TL + KDV
Teklif Alın
*
*
*
*
*
*

> H.265&H.264 triple-stream encoding

> 50/60fps@1080P(1920×1080)

> WDR(140dB), Day/Night(ICR), 3DNR,AWB,AGC,BLC

> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

> 2.7mm ~13.5mm motorized lens

> Micro SD memory, PoE+

> Max. IR LEDs Length 50m



Camera

Image Sensor

1/2.8” 2Megapixel progressive scan CMOS

Effective Pixels

1920(H)x1080(V)

RAM/ROM

1024MB/4096MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.006Lux/F1.6 (Color,1/3s,30IRE)

0.05Lux/F1.6(Color,1/30s,30IRE)

0Lux/F1.6(IR on)

S/N Ratio

Less than 50dB

IR Distance

Distance up to 50m(164ft)

IR On/Off Control

Auto/Manual

IR LEDs

3

Lens

Lens Type

Motorized

Mount Type

Board-in

Focal Length

2.7~13.5mm motorized

Max. Aperture

F1.6

Angle of View

H: 107.17° ~ 31.82°, V: 56.47° ~ 17.62°

Optical Zoom

5x

Focus Control

Motorized

Close Focus Distance

0.3m(0.98ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

44m(144ft)

18m(59ft)

9m(29ft)

4m(13ft)

T

153m(502ft)

61m(200ft)

31m(102ft)

15m(49ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~355˚; Tilt:0˚~65˚; Rotation:0˚~355˚

Artificial Intelligence

People Counting

Line crossing people counting, Region people counting, Loitering filter

Perimeter Protection

Tripwire, Intrusion(Human&Vehicle classification)

General Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

General Intelligence

N/A

Video

Compression

H.265/H.264/H.264B/H.264H/MJPEG(sub stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

3 Streams

Resolution

1080P(1920×1080)/ 1.3M(1280x960)/ 720P(1280x720)/ D1(704×576/704x480)/ VGA(640x480)

Frame Rate

Main Stream: 1080P(1~50/60fps)

Sub Stream: D1 (1 ~ 50/60fps)

Third Stream: 1080P(1~19/29fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24~ 10240Kbps

H.265: 14~ 6144Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / WDR(140dB)/ SSA

White Balance

Auto/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

Support

Smart IR

Support

Defog

Support

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

G.711a/ G.711Mu/ AAC/ G.726

Network

Ethernet

RJ-45 (100/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;

FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;

NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;S

NMP;TLS

Interoperability

ONVIF Profile S&G, API

Streaming Method

Unicast / Multicast

Max. User Access

10 Users/20 Users

Edge Storage

NAS

Local PC for instant recording

Micro SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, DMSS

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

1 Port(For adjustment only)

Audio Interface

1/1 channel In/Out

RS485

1 port

Alarm

1 channel In: 5mA 5VDC

1 channel Out: 1A 30VDC / 0.5A 50VAC

Electrical

Power Supply

DC12V, AC24V, PoE(802.3at)(Class 4)

Power Consumption

DC12V:5.8W 16.4W(IR on)

PoE:5.3W 14.7W(IR on)

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Storage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

IK10

Construction

Casing

Metal

Dimensions

Φ159.1mm*117.9mm

Net Weight

1.06Kg (2.34lb)

Gross Weight

1.28Kg (2.82lb)
