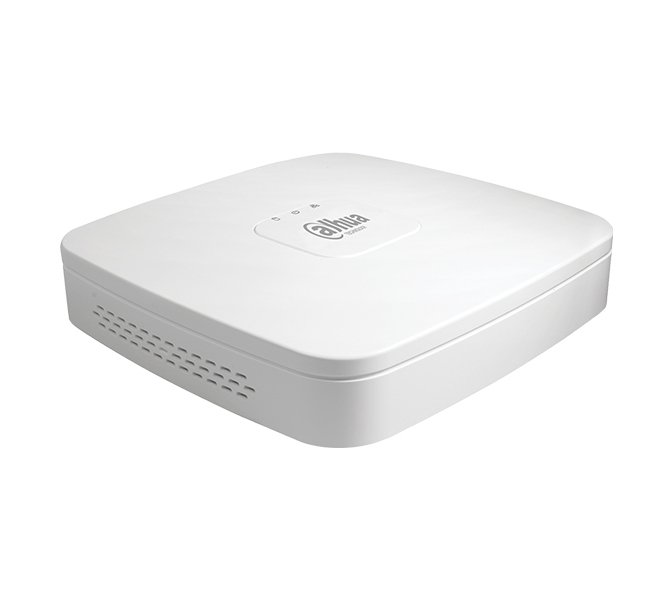

XVR5108C-X 8 Kanal Penta-brid 1080P Smart 1U DVR

System

Main Processor

Embedded Processor

Operating System

Embedded LINUX

Video and Audio

Analog Camera Input

8 Channel, BNC

HDCVI Camera

5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps

AHD Camera

5MP, 4MP, 1080P@25/30, 720P@25/30fps

TVI Camera

5MP, 4MP, 1080P@25/30, 720P@25/30fps

CVBS Camera

PAL/NTSC

IP Camera Input

8+4 Channel, each channel up to 6MP

Audio In/Out

1/1, RCA

Two-way Talk

Reuse audio in/out, RCA

Recording

Compression

H.265+/H.265/H.264+/H.264

Resolution

5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF

Record Rate

Main stream:5M-N(1~10fps), 4M-N/1080P(1~15fps),

1080N/720P/960H/D1/CIF (1~25/30fps)

Sub steram: D1/CIF(1~15fps)

Bit Rate

32Kbps ~ 6144Kbps Per Channel

Record Mode

Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop

Record Interval

1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec

Audio Compression

AAC(only for the 1st channel), G.711A, G.711U, PCM

Audio Sample Rate

8KHz, 16 bit Per Channel

Audio Bit Rate

64Kbps Per Channel

Display

Interface

1 HDMI ,1 VGA

Resolution

1920×1080, 1280×1024, 1280×720

Multi-screen Display

When IP extension mode not enabled: 1/4/8/9

When IP extension mode enabled: 1/4/8/9/16

OSD

Camera title, Time, Video loss, Camera lock, Motion detection, Recording

Network

Interface

1 RJ-45 Port (100M)

Network Function

HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Dahua IP camera, DVR, NVS, etc.)

Max. User Access

128 users

Smart Phone

iPhone, iPad, Android

Interoperability

ONVIF 16.12, CGI Conformant
