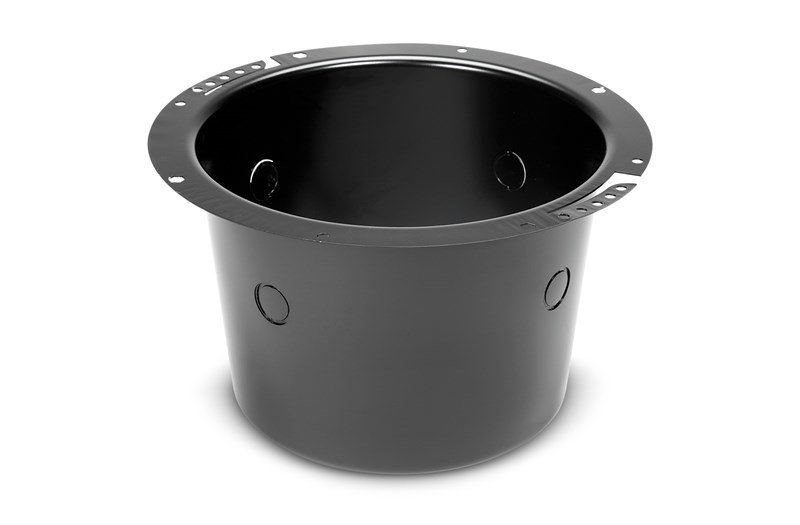

JBL MTC-81BB8 Pre-Install In-Ceiling Backcan

Jbl MTC-81BB8 Pre-Install In-Ceiling Backcan

The MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81TB8 tile bridge for suspended ceilings.

Fits 8138 speaker and MTC-81TB8 Tile Bridge

Extra-large 7.4 liter (0.26 cu ft) volume allows for extra bass

Industry standard 286 mm (11.25 in) mounting circle

Five conduit knockouts

Nesting during storage minimizes storage space requirements

Internal Volume7.4 liters (0.26 cu ft)

Knockouts22 mm (0.87 in) diameter opening

Five (5) locations4 on side of can

1 on top of panel of can

Suspension Tabs2 flexible perforated mounting straps, one on each side.

Attachment Points4 clip-nuts on 286 mm (11.25 in) mounting circle fix M4 tapping screws for attaching tile bridge to backcan, plus 4 thru holes providing clearance for screws from speaker to attach to tile bridge (see assembly drawing).

Material16 gauge (1.3 mm thick) steel, finished in black polymer E-coating for a high level of rust resistance.

Dimensions (H x W x D)178 mm (7 in) height x 300 mm (11.75 in) width and depth

Net Weight (ea)1.1 kg (2.5 lbs)

Shipping Weight (ea)1.5 kg (3.2 lbs)

Associated Models8138 200 mm (8 in) ceiling speaker

MTC-81TB8 tile bridge for 600 mm (24 in) ceiling tile applications.
