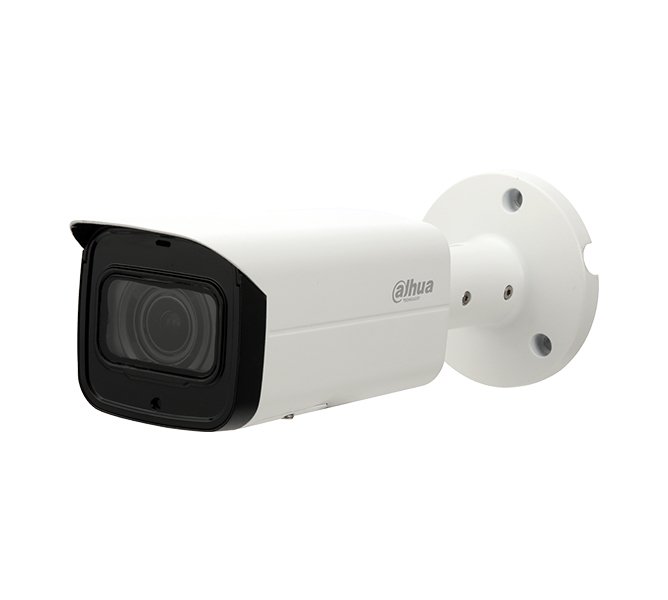

IPC-HFW2231TP-ZS-27135 2MP WDR IR Bullet Network Kamera

Camera

Image Sensor

1/2.8” 2Megapixel progressive CMOS

Effective Pixels

1920(H) x1080(V)

RAM/ROM

256MB/32MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual, 1/3~1/100000s

Minimum Illumination

0.006Lux/F1.4( Color,1/3s,30IRE)

0.05Lux/F1.4( Color,1/30s,30IRE)

0Lux/F1.4(IR on)

S/N Ratio

More than50dB

IR Distance

Distance up to 60m(197ft)

IR On/Off Control

Auto/ Manual

IR LEDs

4

Lens

Lens Type

Motorized (-ZS), Manual (-VFS)

Mount Type

Board-in

Focal Length

2.7mm~13.5mm

Max. Aperture

F1.4

Angle of View

H:106°~29°, V:57°~17°

Focus Control

Motorized (-ZS), Manual (-VFS)

Close Focus Distance

0.3m

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

46m(150ft)

18m(59ft)

9m(30ft)

5m(16ft)

T

153m(502ft)

61m(200ft)

31m(102ft)

15m(49ft)

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Intelligence

Event Trigger

Motion detection, Video tampering , Scene changing

, Network disconnection , IP address conflict, Illegal Access,Storage anomaly

IVS

Tripwire, Intrusion

Video

Compression

H.265/H.264H/MJPEG(Sub Stream)

Smart Codec

Support H.265+/H.264+

Streaming Capability

2 Streams

Resolution

1080P(1920×1080)/1.3M(1280×960)/

720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 1080P (1 ~ 25/30fps)

Sub Stream: D1(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR
