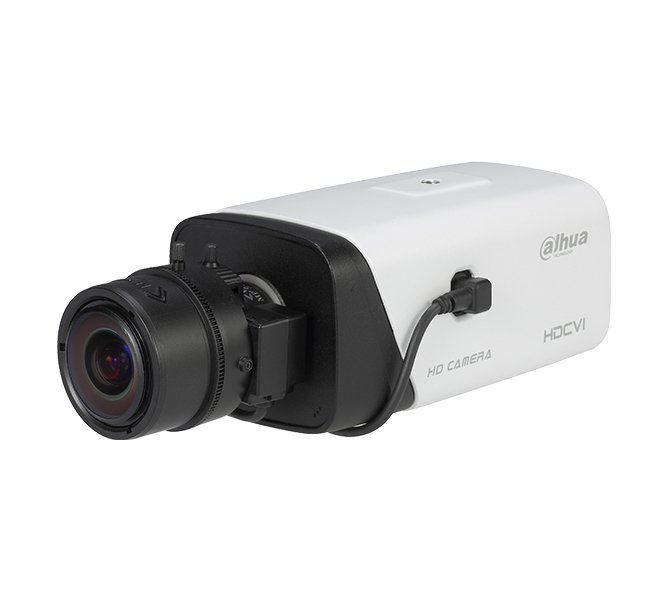

HAC-HF3231E-T 2MP Starlight HDCVI Box Kamera

Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1945(H)×1097(V), 2.1MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1.3s~1/30000s NTSC: 1s~1/30000s

Minimum Illumination

0.005Lux/F1.2 (Color), 0.0005Lux/F1.2 (B/W)

S/N Ratio

More than 65dB

IR Distance

N/A

IR On/Off Control

N/A

IR LEDs

N/A

Lens

Lens Type

C/CS lens / Auto iris

Mount Type

C/CS

Focal Length

N/A

Max Aperture

N/A

Angle of View

N/A

Focus Control

Auto / Manual

Close Focus Distance

N/A

Pan / Tilt / Rotation

Pan/Tilt/Rotation

N/A

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output & 1-channel BNC SDI video output

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D / 3D

White Balance

Auto / Manual

Smart IR

N/A

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

1-channel audio in

Alarm Interface

2-channel alarm in & 1-channel alarm out

Eelectrical

Power Supply

AC 24V±25% / DC 12V±25%

Power Consumption

Max 4.7W (12V DC, IR on)

Environmental

Operating Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH * Start up should be done at above -30°C (-22°F)

Storage Conditions

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

N/A

Construction

Casing

Aluminium

Dimensions

135.4mm×74.4mm×65.5mm (5.33"×2.93"×2.58")

Net Weight

0.49kg (1.08lb)

Gross Weight

0.60kg (1.32lb)
