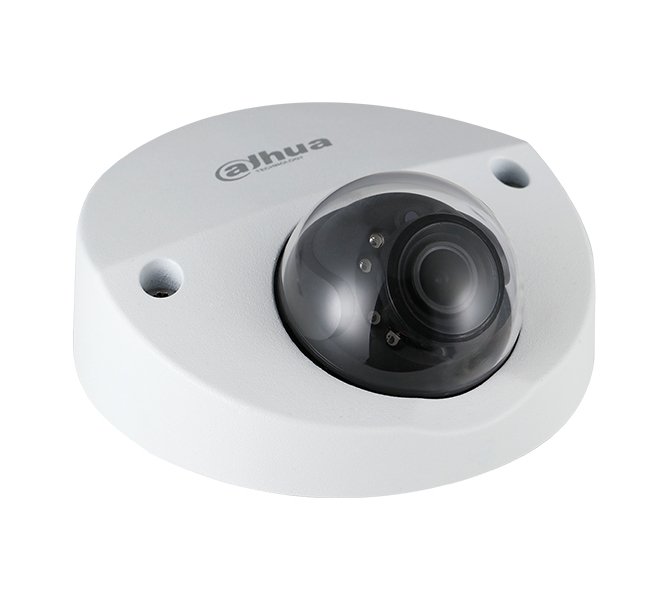

HAC-HDBW2241F-M-A 2MP Mobile HDCVI IR Dome Kamera

Kategori
Marka
Stok Kodu
MDL400007
Fiyat
0,00 TL + KDV
Teklif Alın
*
*
*
*
*
*

> Starlight, 120dB true WDR, 3DNR
> Max. 30fps@1080P
> Audio in interface, built-in mic
> HDCVI output (Aviation connector)
> 3.6mm fixed lens (2.8mm optional)
> Max. IR length 20m, Smart IR
> IP67, IK10, DC12V±30%
> IP6K9K, shock-proof


Camera

Image Sensor

1/2.8" CMOS

Effective Pixels

1920(H)×1080(V), 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/4s~1/100000s

NTSC: 1/3s~1/100000s

Minimum Illumination

0.004Lux/F1.6, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m (66feet)

IR On/Off Control

Auto / Manual

IR LEDs

8

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm (2.8mm Optional)

Max Aperture

F1.6

Angle of View

H: 86.9° (110°)

Focus Control

N/A

Close Focus Distance

1200mm (500mm)

47.2'' (19.7'')

DORI Distance

Note: The DORI distance is a "general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.


DORI

Definition

Distance

Detect

25px/m

(8px/ft)

2.8mm: 39m(128ft)

3.6mm: 55m(180ft)

Observe

63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 22m(72ft)

Recognize

125px/m

(38px/ft)

2.8mm: 8m(26ft)

3.6mm: 11m(36ft)

Identify

250ppm

(76px/ft)

2.8mm: 4m(13ft)

3.6mm: 6m(20ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 60°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

1080P (1920×1080)

Frame Rate

25/30fps@1080P, 25/30/50/60fps@720P

Video Output

1-channel BNC HDCVI high definition video output(Aviation connector)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / WDR

WDR

120dB

Gain Control

AGC

Noise Reduction

2D / 3D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

ECE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

EN50155 (EN50121-3-2, IEC61373)

IP6K9K

EN45545

Interface

Audio Interface

1ch in & Built-in Mic

Aviation Connector Interface

1-power

2-video ground

3-power ground

4-video

Eelectrical

Power Supply

12V DC ±30%

Power Consumption

Max. 3.6W

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH

Ingress Protection & Vandal Resistance

IP67 & IK10

Construction

Casing

Aluminium

Dimensions

Φ106mm×50.3mm (Φ4.17"×1.98")

Net Weight

0.31kg (0.68lb)

Gross Weight

0.45kg (0.99lb)
